Building Site 2500KG Temporary Construction Elevators

  • 1
  • 2

Brand Name : KANGBO

Model Number : Construction site hoist rack pinion high speed heavy payload SC250/250(BG) KP-B20

Certification : TUV

Place of Origin : CHINA

MOQ : 1 set

Price : In USD

Payment Terms : T/T, L/C

Supply Ability : 150 sets per month

Delivery Time : 30 days after receipt of L/C or down payment

Packaging Details : Export package

Description : Construction site hoist rack pinion high speed heavy payload SC250/250(BG) KP-B20

Model : SC250/250(BG) KP-B20

Purpose and uses : Vertical transportation of man and materials in construction site or building site

Design : According to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009

Material : Q345B steel

Production : Processed by CNC machines, Laser, Robots in assembly line

Contact Now

Construction site hoist rack pinion high speed heavy payload SC250/250(BG) KP-B20

Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* Easy access to electrical panels of elevator for maintenance.
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
* Frequency control unit (FC), with closed-loop, which gives the passenger and material hoists very smooth starting and stopping with low starting current and less wear and tear.

Technical Data

Item & Article No. SC250/250(BG) KP-B20
Payload Capacity 2500KG per Cage
Lifting Speed 0–80 m/min.
Max. Lifting Height 450 m
Cage width (internal) 1.5 m
Cage length (internal) 3.2 m
Cage height (internal) 2.35 m
Motor Control Frequency Control
Engine Power 3x38 KW per Cage
Gearbox Helical Gearbox
Safety Device Type Centrifugal Brake
Power Supply Range 380–500 V, 50 or 60 Hz, 3 Phase
Mast Section Square Column 650*650*1508 mm with Bolted Rack
Rack Module 8

Art. No. Model Payload
(KG)
Lifting Speed (m/min) Motor Power (KW) Invertor Power (KW) Max Height (M) Invertor Brand Motor Gear Box Voltage & Frequency
KP-B19 SC250(BG) 2500 0-80 38×3 132×1 450 Schneider Chinese PIELI Helical Gear Box 380–500 V,
50 or 60 Hz,
3 Phase
KP-B20 SC250/250(BG) 2500 0-80 38×3×2 132×2 450 Schneider Chinese PIELI Helical Gear Box

380–500 V,
50 or 60 Hz,

3 Phase

Building Site 2500KG Temporary Construction Elevators


Product Tags:

2500KG building site hoist



2500KG rack pinion elevator


Best Building Site 2500KG Temporary Construction Elevators wholesale

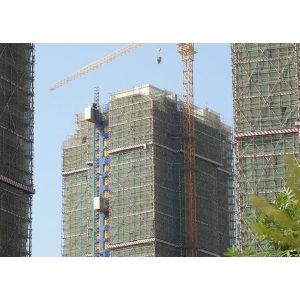

Building Site 2500KG Temporary Construction Elevators Images
